CHINA MS TECHNOLOGY CO., LTD. (MS MOTOR CO.,LTD.)
32JXB30K/28ZY47P-1

32mm OD Planetary Gearbox. Permissible Load Range: 0.3N.m~3.0N.m

Motor Technical Data

TYPE

Rated

voltage

VDC

No-load

speed

r/min

No-load

current

mA

Rated

speed

r/min

Rated

torque

mN.m

Output

power

W

Rated

current

mA

Stall

torque

mN.m

Stall

current

A

28ZY47P- 1265

12

6500

150

5290

7.6

4.2

530

23

1.6

28ZY47P-2465

24

6500

85

5250

7.3

4.0

250

23

0.8

Gear Motor Technical Data

28ZY47P-1265 DC Motor

Reduction ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

254

354

495

596

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)         mm

25.7

25.7

32.8

32.8

32.8

32.8

39.7

39.7

39.7

39.7

46.6

46.6

46.6

46.6

46.6

No-load speed   r/min

1756

1255

464

342

241

186

127

92

65

47

34

26

18

13

11

Rated speed    r/min

1426

1021

378

278

196

151

104

75

53

38

28

21

15

11

8.9

Rated torque    N.m

0.025

0.035

0.086

0.12

0.17

0.22

0.28

0.39

0.55

0.77

0.93

1.3

1.7

2.4

2.9

N.m  Max. permissible   load in a short time

1.0

1.0

3.5

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9

28ZY47P-2465 DC Motor

Reduction ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

254

354

495

596

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)         mm

25.7

25.7

32.8

32.8

32.8

32.8

39.7

39.7

39.7

39.7

46.6

46.6

46.6

46.6

46.6

No-load speed   r/min

1752

1255

464

342

241

186

127

92

65

47

34

26

18

13

11

Rated speed    r/min

1415

1014

375

276

194

150

103

74

53

38

28

21

15

11

8.8

Rated torque    N.m

0.024

0.034

0.083

0.11

0.16

0.21

0.27

0.38

0.53

0.74

0.90

1.2

1.7

2.3

2.8

N.m  Max. permissible   load in a short time

1.0

1.0

3.5

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9

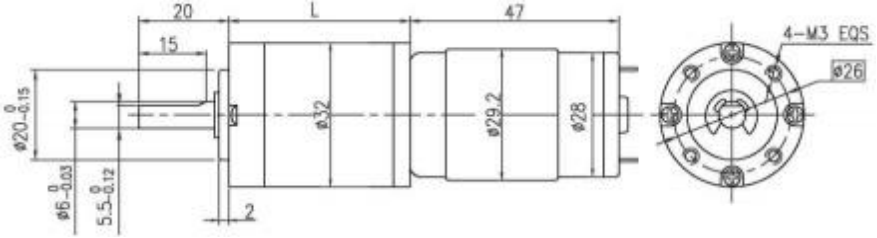

Dimensions


Standard output shaft OD 6mm, OD 8mm optional.
