16mm OD Standard Gearbox.Permissible Load Range: 0.03N.m~0.3N.m
Motor Technical Data
TYPE | Rated voltage VDC | No-load speed r/min | No-load current mA | AT MAXMUM EFFICIENCY | Stall torque mN.m | Stall current A | |||
speed r/min | current A | Torque mN.m | Output W | ||||||
16ZY27B-0682 | 6 | 8200 | 60 | 6900 | 0.21 | 1.08 | 0.78 | 6.66 | 1.1 |
16ZY27B-0699 | 6 | 9900 | 60 | 8300 | 0.25 | 1.17 | 1.01 | 7.50 | 1.3 |
Gear motor Technical Data
16ZY27B-0682 DC Motor
Reduction ratio | 4 | 4.75 | 16 | 19 | 22 | 64 | 76 | 90 | 107 | 256 | 304 | 361 | 428 | 509 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
Length(L) mm | 11.4 | 11.4 | 15.1 | 15.1 | 15.1 | 18.8 | 18.8 | 18.8 | 18.8 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 |
No-load speed r/min | 2050 | 1720 | 513 | 432 | 373 | 128 | 108 | 91 | 77 | 32 | 27 | 23 | 19 | 16 |
Rated speed r/min | 1725 | 1453 | 431 | 363 | 314 | 108 | 91 | 77 | 64 | 27 | 23 | 19 | 16 | 14 |
Rated torque mN.m | 3.9 | 4.6 | 14 | 17 | 19 | 50 | 60 | 71 | 84 | 180 | 213 | 253 | 300 | 300 |
mN.m Max. permissible load in a short time | 90 | 90 | 450 | 450 | 450 | 750 | 750 | 750 | 750 | 900 | 900 | 900 | 900 | 900 |
16ZY27B-0699 DC Motor
Reduction ratio | 4 | 4.75 | 16 | 19 | 22 | 64 | 76 | 90 | 107 | 256 | 304 | 361 | 428 | 509 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
Length(L) mm | 11.4 | 11.4 | 15.1 | 15.1 | 15.1 | 18.8 | 18.8 | 18.8 | 18.8 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 |
No-load speed r/min | 2476 | 2084 | 619 | 521 | 450 | 155 | 130 | 110 | 93 | 39 | 33 | 27 | 23.1 | 19.4 |
Rated speed r/min | 2075 | 1747 | 519 | 437 | 377 | 130 | 109 | 92 | 78 | 32 | 27 | 23.0 | 19.3 | 16.3 |
Rated torque mN.m | 4.2 | 5.0 | 15 | 18 | 21 | 55 | 65 | 77 | 91 | 195 | 231 | 275 | 300 | 300 |
mN.m Max. permissible load in a short time | 90 | 90 | 450 | 450 | 450 | 750 | 750 | 750 | 750 | 900 | 900 | 900 | 900 | 900 |

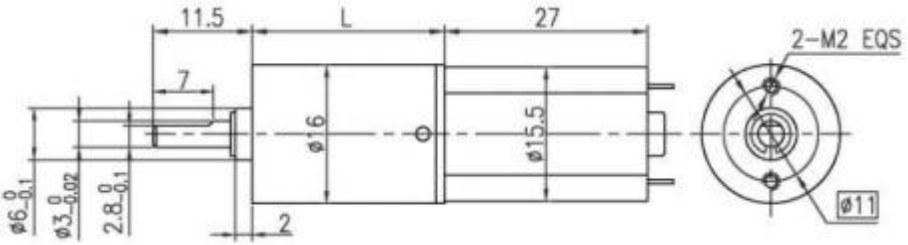

Dimensions
