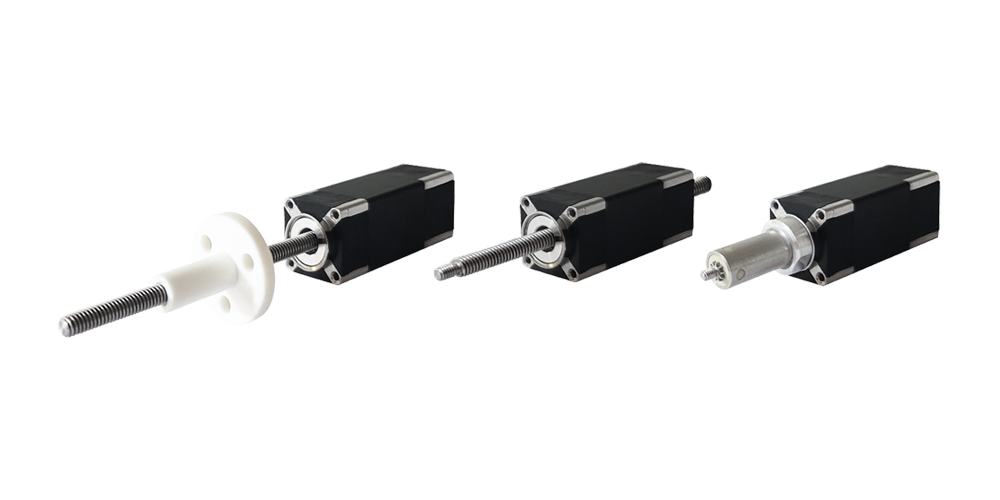

• Motor Characteristics

  Motor	Voltage[V]	Current[A]	Resistance[Ω]	Inductance[mH]	Weight[g]	Lead Wire No.	Motor Length[mm]
  6-2103	6.6	0.3	22	4.5	60	4	32

NOTE

Motor Insulation Class B, Motor Temperature Rise 80°C, Ambient Temperature -20℃~55℃

• Available Lead Screw and Travel per Step




  Screw Dia.[inch]	Screw Dia.[mm]	Lead[inch]	Lead[mm]	Lead Code	Travel Per Step @ 1.8° [mm]*
  0.138	3.5	0.0118	0.3	AF	0.0015
  0.138	3.5	0.024	0.6096	AA	0.003048
  0.138	2.5	0.0394	1	AB	0.005
  0.138	3.5	0.048	1.2192	B	0.006096
  0.138	3.5	0.0787	2	G	0.01
  0.138	3.5	0.1575	4	M	0.02
  0.138	3.5	0.315	8	T	0.04

  * Motor wiring and screw lead could be customized according to customer’s request

  * Value truncated

• Dimensional Drawings

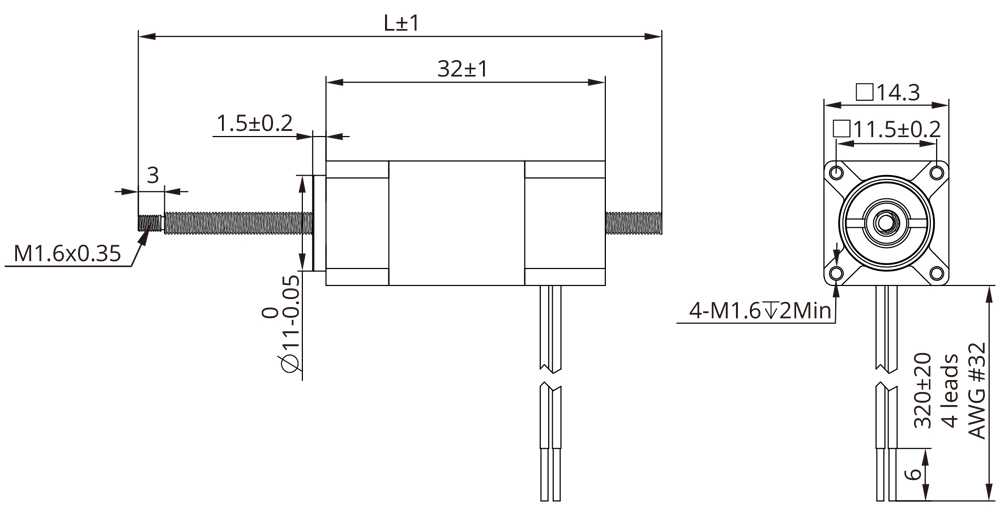

• External

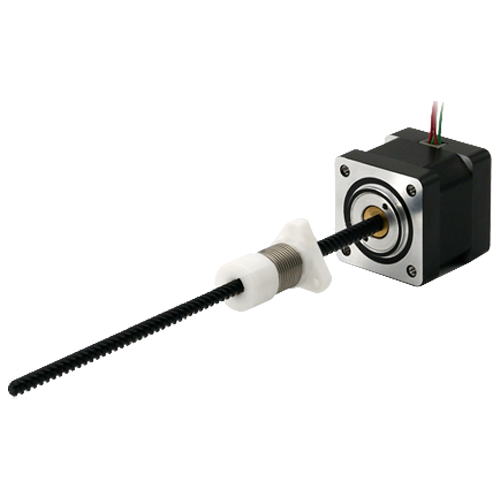

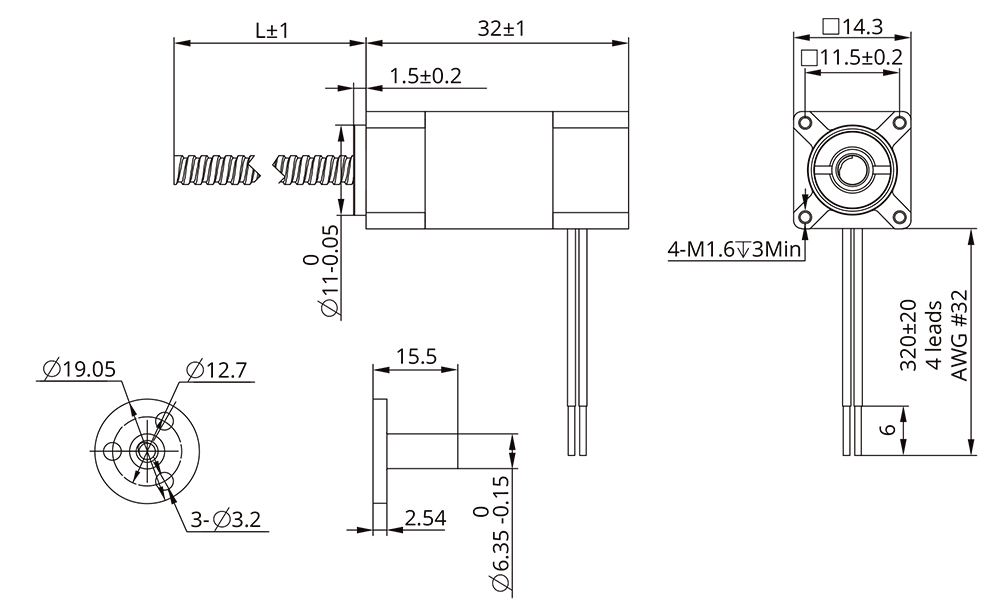

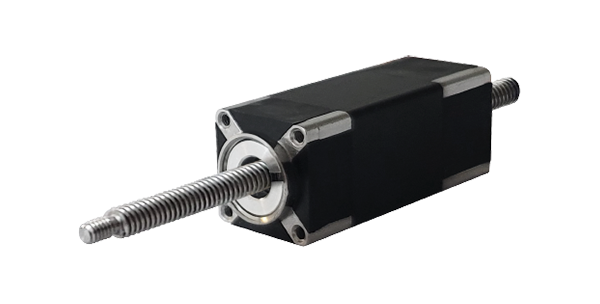

• Non-captive

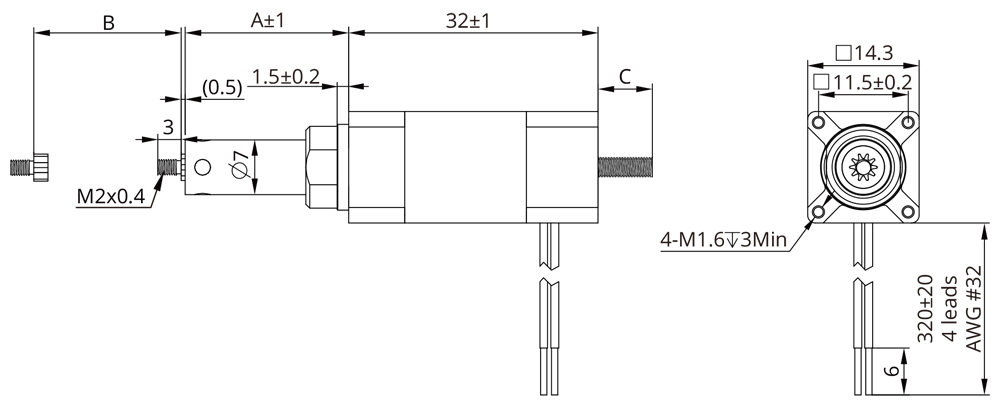

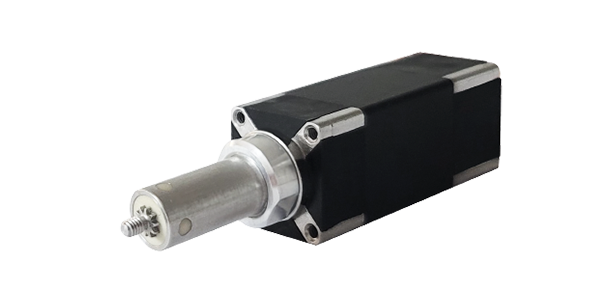

  Kaptive






  Stroke Specification




  Size A (mm)	Stoke B (mm)	Size C (mm)
  11	10	0
  16	15	2
  21	20	7

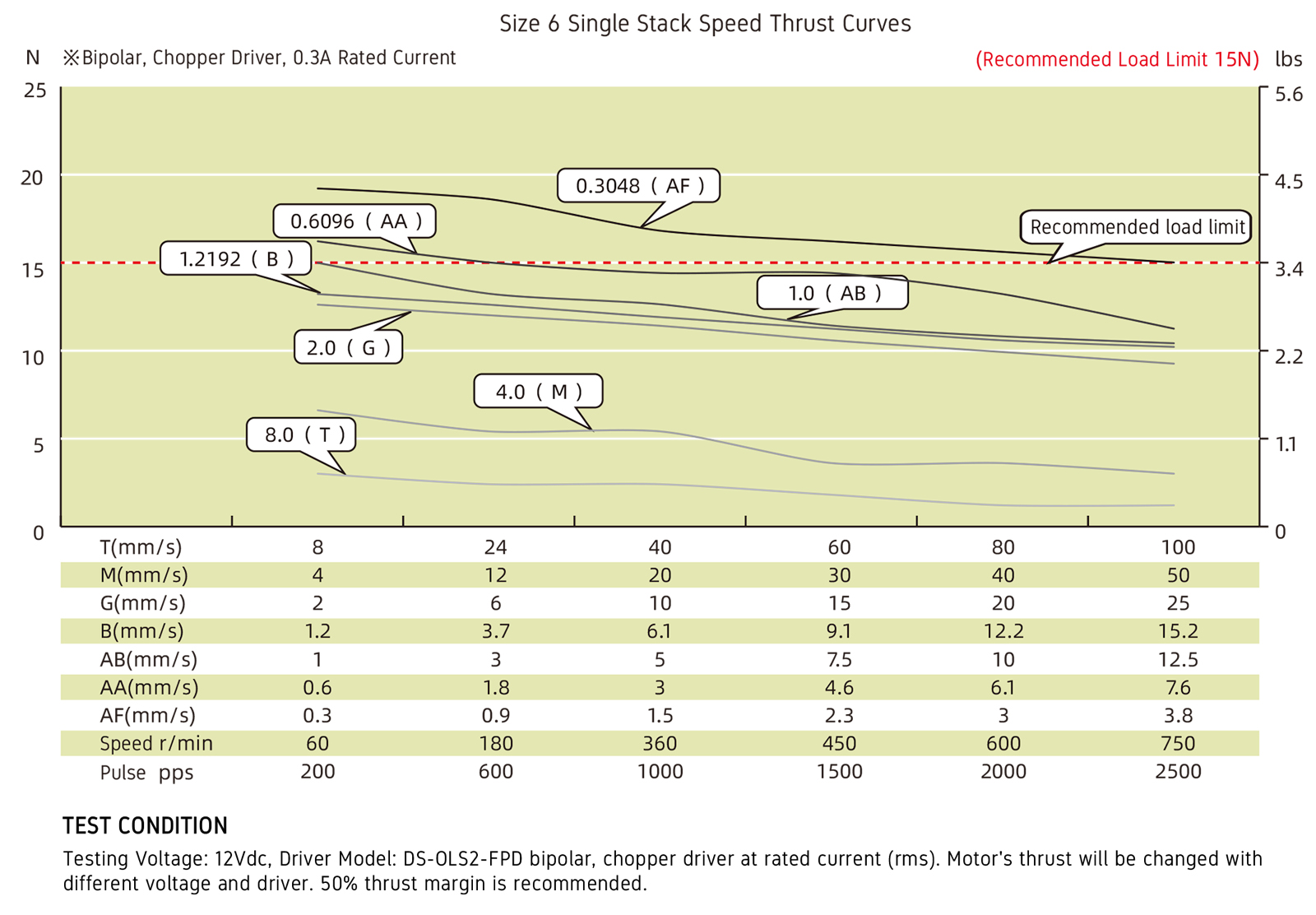

• Speed Thrust Curves

• Options

Screw End Machining

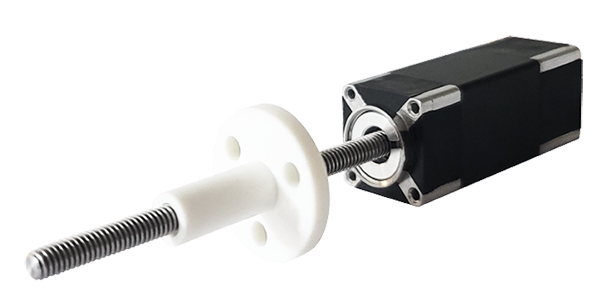

Teflon Coating

If customer's applications require greaseless screw and nut combination, we offer teflon coated lead screw of stepper linear actuator.

Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.

Teflon coating can be applied in the whole range of lead screw options and all types of linear actuators such as External, Non-Captive, Electric Cylinder and Kaptive.

In addition, anti-backlash nut also can be combined with teflon coated lead screw too.

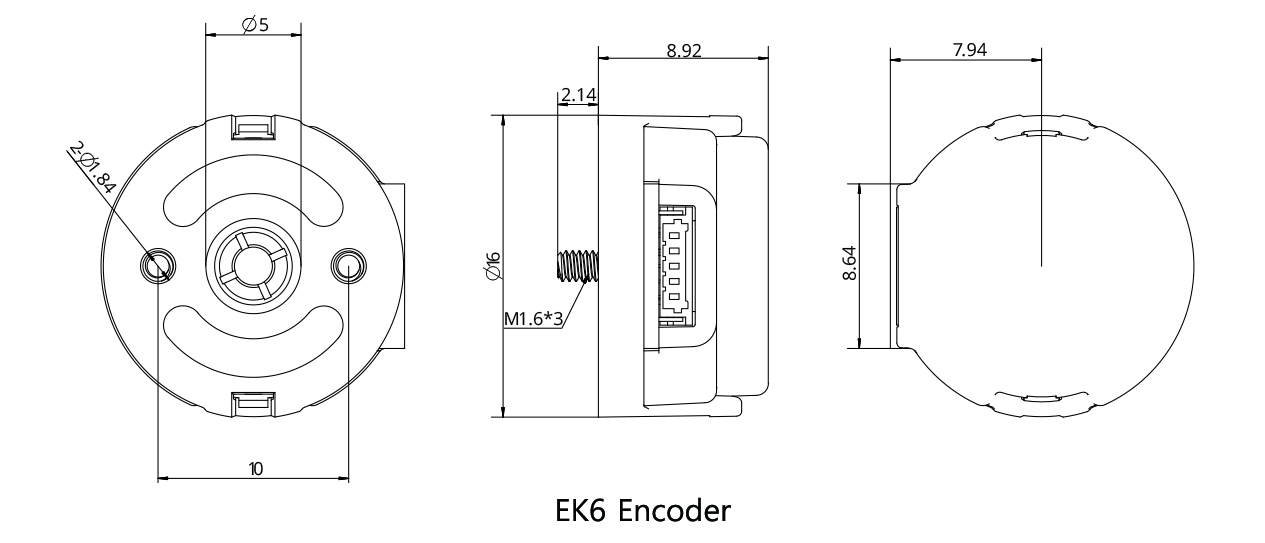

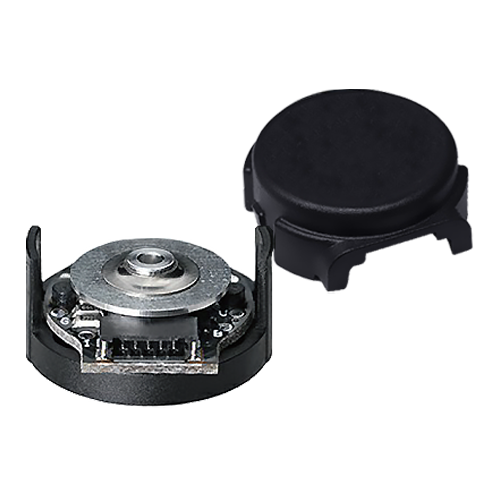

Encoder Option
