• Compact Size for High Torque • NEMA Size 23 Mounting• Custom winding available (No additional cost)• RoHS and CE version
Specifications
Series | Holding Torque | Rated | Resistance | Inductance | Rotor Inertia | Motor | Motor | Lead | |
23HM242-21-8A | Parallel | 0.56 | 3.0 | 0.53 | 1.6 | 120 | 0.5 | 42 | 8 |
Series | 0.56 | 1.5 | 2.12 | 6.4 | |||||
Unipolar | 0.4 | 2.1 | 1.06 | 1.6 | |||||
23HM242-20-4A | 0.56 | 2.0 | 1.40 | 3.4 | 120 | 0.5 | 42 | 4 | |
23HM242-30-4A | 0.56 | 3.0 | 0.7 | 2.2 | 120 | 0.5 | 42 | 4 | |
23HM242-10-6A | 0.4 | 1.0 | 5.70 | 8.0 | 120 | 0.5 | 42 | 6 | |
23HM242-20-6A | 0.4 | 2.0 | 1.40 | 2.2 | 120 | 0.5 | 42 | 6 | |
23HM242-30-6A | 0.4 | 3.0 | 0.53 | 0.7 | 120 | 0.5 | 42 | 6 | |
23HM251-21-8A | Parallel | 0.9 | 3.0 | 0.68 | 3.0 | 200 | 0.65 | 51 | 8 |
Series | 0.9 | 1.5 | 2.72 | 12 | |||||
Unipolar | 0.65 | 2.1 | 1.36 | 3.0 | |||||
23HM251-20-4A | 0.9 | 2.0 | 1.76 | 6.6 | 200 | 0.65 | 51 | 4 | |
23HM255-21-8A | Parallel | 1.1 | 3.0 | 0.73 | 3.8 | 280 | 0.70 | 55 | 8 |
Series | 1.1 | 1.5 | 2.92 | 15 | |||||
Unipolar | 0.8 | 2.1 | 1.46 | 3.8 | |||||
23HM255-10-6A | 1.1 | 1.0 | 7.4 | 17.5 | 280 | 0.70 | 55 | 6 | |
23HM255-20-6A | 1.1 | 2.0 | 1.8 | 4.5 | 280 | 0.70 | 55 | 6 | |
23HM255-20-4A | 1.1 | 2.0 | 1.88 | 8.2 | 280 | 0.70 | 55 | 4 | |
23HM255-30-4A | 1.1 | 3.0 | 0.9 | 4.5 | 280 | 0.70 | 55 | 4 | |
23HM276-21-8A | Parallel | 1.7 | 3.0 | 1.0 | 6.0 | 480 | 1.0 | 76 | 8 |
Series | 1.7 | 1.5 | 4.0 | 24 | |||||
Unipolar | 1.2 | 2.1 | 2.0 | 6.0 | |||||
23HM276-10-6A | 1.7 | 1.0 | 8.6 | 23 | 480 | 1.0 | 76 | 6 | |
23HM276-20-6A | 1.7 | 2.0 | 2.25 | 5.6 | 480 | 1.0 | 76 | 6 | |
23HM276-20-4A | 1.7 | 2.0 | 2.6 | 13 | 480 | 1.0 | 76 | 4 | |
23HM276-30-4A | 1.7 | 3.0 | 1.0 | 5.6 | 480 | 1.0 | 79 | 4 |

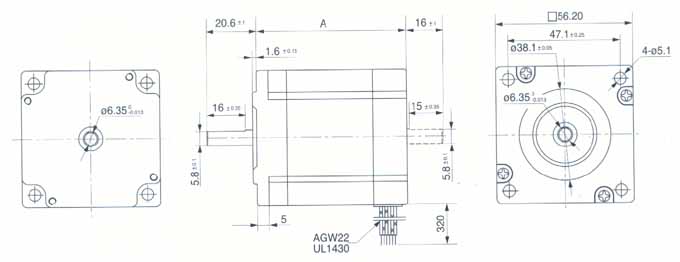

Dimensions
Wiring Diagram
Torque Curves
Pull out torque curve:
