11H 2-phase 1.8 degree
• Compact Size for High Torque • NEMA Size 11 Mounting• Custom winding available (No additional cost)• RoHS and CE version
Specifications
Model No. | Rated Voltage | Current | Resistance | Inductance | Holding Torque | #Of Leads | Rotor Inertia | Weight | Length | |
V | A | Ω | mH | Oz-in | g-cm | g-cm² | Kg | mm | ||
11H32H-0956A(B) | 2.66 | 0.95 | 2.8 | 1.0 | 6 | 430 | 6 | 9 | 0.11 | 31.5 |
11H32H-0674A(B) | 3.8 | 0.67 | 5.6 | 4.2 | 8.3 | 600 | 4 | |||
11H45H-0956A(B) | 3.2 | 0.95 | 3.4 | 1.2 | 10.4 | 750 | 6 | 12 | 0.14 | 44.5 |
11H45H-0674A(B) | 4.6 | 0.67 | 6.8 | 4.9 | 13.2 | 950 | 4 | |||
11H51H-0956A(B) | 4.4 | 0.95 | 4.6 | 1.4 | 12.5 | 900 | 6 | 18 | 0.2 | 50.5 |
"A" is single shaft, "B" is double shaft.
Dimensions

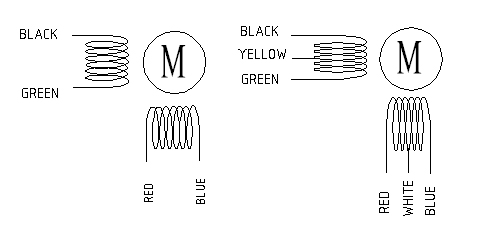

Wiring Diagram:
Torque Curves

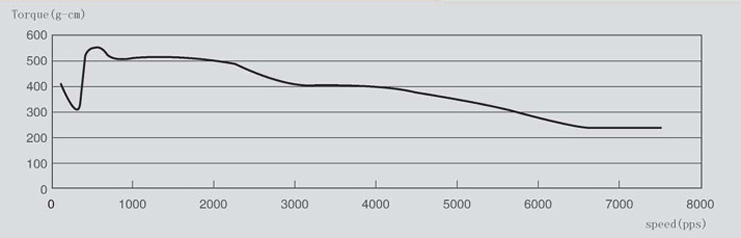

Pull out torque curve:
MODEL:11H32H-0956 CURRENT:0.95A VOLTAGE:24VDC FULL STEP MODEL:11H45H-0956 CURRENT:0.95A VOLTAGE:24VDC FULL STEP
MODEL:11H51H-0956 CURRENT:0.95A VOLTAGE:24VDC FULL STEP
