32mm OD Planetary Gearbox.Permissible Load Range: 0.3N.m~3.0N.m
Motor Technical Data
Type | Rated yoltage VDC | No-load speed r/min | No-load current mA | Rated speed r/min | Rated torque mN.m | Output power W | Rated current mA | Stall torque mN.m | Stall current A |
28ZY47P-2460 | 24 | 6000 | 100 | 4500 | 17 | 8.0 | 470 | 65 | 1.8 |
P-Shielding case, OD 28.9mm.
Gear Motor Technical Data
28ZY47P-2460 DC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 181 | 218 | 253 | 305 | 354 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
Length(L) mm | 25.7 | 25.7 | 32.8 | 32.8 | 32.8 | 39.7 | 39.7 | 39.7 | 39.7 | 46.6 | 46.6 | 46.6 | 46.6 | 46.6 |
No-load speed r/min | 1617 | 1158 | 429 | 316 | 222 | 118 | 85 | 60 | 43 | 33 | 28 | 24 | 20 | 17 |
Rated speed r/min | 1213 | 869 | 321 | 237 | 167 | 88 | 63 | 45 | 32 | 25 | 21 | 18 | 15 | 13 |
Rated torque N.m | 0.06 | 0.08 | 0.19 | 0.26 | 0.37 | 0.63 | 0.88 | 1.2 | 1.7 | 2.0 | 2.4 | 2.8 | 3 | 3 |
N.m Max,permissible load in a short time | 1.0 | 1.0 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 | 9 | 9 |

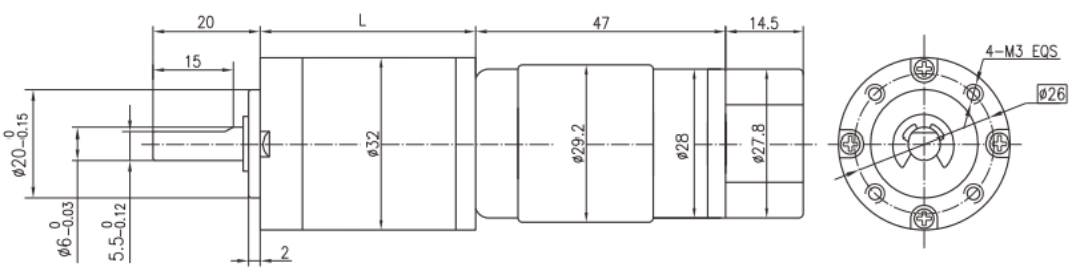

Dimensions
Magnetic Encoder
Model: CBM28 output characteristics: 2 channel, two-way control, DC motor rotation a week out of 3PPR、7PPR

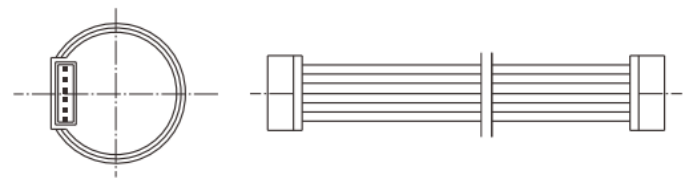

Encoder connection: flat cable, length 250mm.
1.MOTOR-
2.MOTOR+
3.HALL SENSOR Vcc
4.HALL SENSOR GND
5.HALL SENSOR A Vout
6.HALL SENSOR B Vout
