110 Series (NEMA44) brushless DC servo motor

110 Series(NEMA44) brushless DC servo motor

Encoder signal waveform



Electrical Specifications



Series   Model

Rated power

Rated

voltage

Rated

current

Number

of

poles

Rated speed

Rated

torque

Peak

torque

Encoder

Length

  Weight

W

VDC

A


rpm

N.m

N.m

P/R

mm

Kg

110BLM3A140-625-1000Z

836

310

3.6

8

2000

4

12

1000

177

4.5

110BLM3A160-625-1000Z

1255

310

5.4

8

2000

6

18

1000

207

5.5

110BLM3A180-625-1000Z

1673

310

7.2

8

2000

8

24

1000

222

6.5

Reverse potential phase sequence diagram

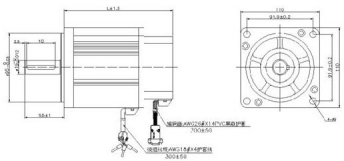

Dimensions


Connection definition


Encoder lead definition

Power cord


1

2

3

4

5

6

7

8

9

10

11

12

13

14

1

2

3

color

black

red

blue

Yellow-black

green

Green and yellow

white

White-black

palm tree

Brown and black

ash

Gray-black

orange

Orange black

yellow

green

blue

signal

GND

+5V

U+

U-

V+

V-

W+

W-

A+

A+

B+

B-

I+

l-

U

V

W
