28mm OD Planetary Gearbox.Permissible Load Range:0.3N.m~3.0N.m
Wire Diagram
U | V | W | Vcc | Ha | Hb | Hc | GND |
Red | Yellow | Black | Red | Blue | Green | White | Black |
20AWG UL1569 | 26AWG UL1569 | ||||||
Brushless Motor Technical Data
Type | Number of poles | Number of phase | Rated voltage VDC | No-l oad speed r/min | No-load current A | Rated torque mN.m | Rated speed r/min | Rated current A | Rated power W | Reak torque mN.m | Peak current A |
28DMW49-2460 | 4 | 3 | 24 | 6000 | 0.25 | 20 | 5000 | 1.0 | 10 | 60 | 3.0 |
Brushless Gear Motor Technical Data
28DMW49-2460 BLDC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 35 | 51 | 71 | 100 | 139 | 181 | 218 | 253 | 305 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 |
Length(L) mm | 25.7 | 25.7 | 32.8 | 32.8 | 32.8 | 32.8 | 39.7 | 39.7 | 39.7 | 39.7 | 46.6 | 46.6 | 46.6 | 46.6 |
No-load speed r/min | 1617 | 1158 | 429 | 316 | 222 | 171 | 118 | 85 | 60 | 43 | 33 | 28 | 24 | 20 |
Rated speed r/min | 1348 | 965 | 357 | 263 | 185 | 143 | 98 | 70 | 50 | 36 | 28 | 23 | 20 | 16 |
Rated torque N.m | 0.067 | 0.093 | 0.23 | 0.31 | 0.44 | 0.57 | 0.74 | 1.0 | 1.5 | 2.0 | 2.4 | 2.8 | 3 | 3 |
Max. permissible load in a short time N.m | 1.0 | 1.0 | 3.5 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 | 9 |

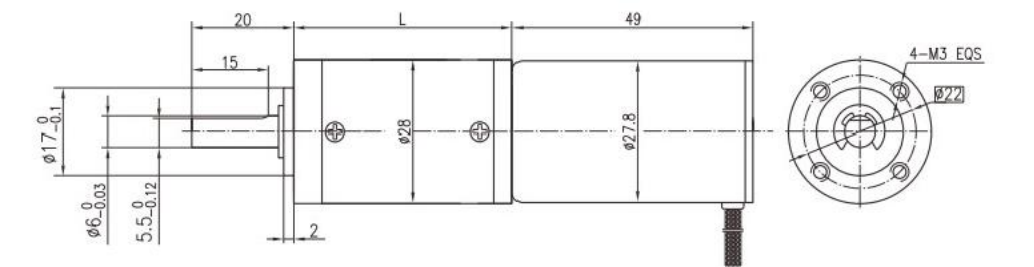

Dimensions
