24mm OD Planetary Gearbox.Permissible Load Range: 0.1N.m~1.0N.m
Wire Diagram
PIN1# (white)PWM speed regulation: Input 1~50kHz PWM signal, by adjusting the duty ratio can adjust the motor speed.
PIN 2# (black) Negative of the power supply
PIN 3#(blue) Forward and reverse turn: CCW for overhead steering and CW for ground short steering.
PIN4# (yellow) Feedback: n=60*F/P,F is the feedback frequency, P is the motor pole number 6 pairs. PIN 5# (red) Positive of the power supply
(1) The red line is connected to the positive terminal of the power supply, the black line and the white line are connected to the negative terminal, and the motor is turned to CCW.
(2) The red line is connected to the positive terminal of the power supply, the black line, the white line and the blue line are connected to the negative terminal, and the motor is turned to CW. (3) The white line is connected to the negative electrode, the motor is running at full speed, and the white line can be adjusted when the PWM is connected separately. (4) Cable length 100mm.
Brushless Motor Technical Data
Type | Number of poles | Number of phase | Operating range VDC | Rated voltage VDC | No-load speed r/min | No-load current mA | Rated torque g.cm | Rated speed r/min | Rated current mA | Bated power W |
B2430N-1280 | 12 | 3 | 9~16 | 12 | 8000 | 180 | 60 | 6000 | 420 | 3.7 |
B2430N-2480 | 12 | 3 | 9~26 | 24 | 8000 | 100 | 60 | 6200 | 210 | 3.8 |
Brushless Gear Motor Technical Data
B2430N-1280 BLDC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 | 516 | 720 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
Length(L) mm | 25.0 | 25.0 | 31.6 | 31.6 | 31.6 | 38.0 | 38.0 | 38.0 | 38.0 | 44.4 | 44.4 | 44.4 | 44.4 | 44.4 |
No-load speed r/min | 2156 | 1544 | 571 | 421 | 296 | 157 | 113 | 80 | 58 | 42 | 30 | 22 | 16 | 11 |
Rated speed r/min | 1617 | 1158 | 429 | 316 | 222 | 118 | 85 | 60 | 43 | 32 | 23 | 16 | 12 | 8.3 |
Rated torque N.m | 0.020 | 0.028 | 0.067 | 0.091 | 0.13 | 0.22 | 0.31 | 0.43 | 0.60 | 0.72 | 1 | 1 | 1 | 1 |
Max. permissible load in a short time N.m | 0.3 | 0.3 | 1.2 | 1.2 | 1.2 | 2.4 | 2.4 | 2.4 | 2.4 | 3 | 3 | 3 | 3 | 3 |
B2430N-2480 BLDC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 | 516 | 720 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
Length(L) mm | 25.0 | 25.0 | 31.6 | 31.6 | 31.6 | 38.0 | 38.0 | 38.0 | 38.0 | 44.4 | 44.4 | 44.4 | 44.4 | 44.4 |
No-load speed r/min | 2156 | 1544 | 571 | 421 | 296 | 157 | 113 | 80 | 58 | 42 | 30 | 22 | 16 | 11 |
Rated speed r/min | 1671 | 1197 | 443 | 326 | 230 | 122 | 87 | 62 | 45 | 33 | 23 | 17 | 12 | 8.6 |
Rated torque N.m | 0.020 | 0.028 | 0.067 | 0.091 | 0.13 | 0.22 | 0.31 | 0.43 | 0.60 | 0.72 | 1 | 1 | 1 | 1 |
Max. permissible load in a short time N.m | 0.3 | 0.3 | 1.2 | 1.2 | 1.2 | 2.4 | 2.4 | 2.4 | 2.4 | 3 | 3 | 3 | 3 | 3 |

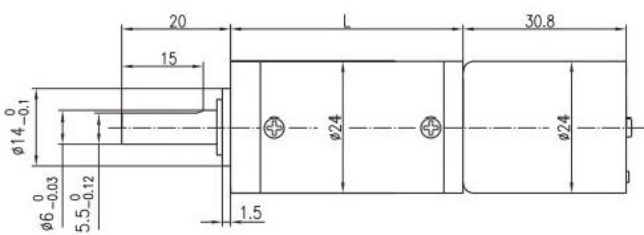

Dimensions
Brushless motor built-in driver, with a positive inversion, speed control function.
