6H 2-phase 1.8 degree
• Compact Size for High Torque • NEMA Size 6 Mounting• Custom winding available (No additional cost)• RoHS and CE version
Specifications
Model No. | Current | Resistance | Inductance | Holding Torque | #Of Leads | Weight | Length | ||
Single Shaft | Double Shaft | A | Ω | mH | Oz-in | kg-cm | Kg | mm | |
6H30H-0304A | 6H30H-0304B | 0.3 | 22 | 4.0 | 0.8 | 0.058 | 4 | 0.03 | 32 |
we can make special current/phase,leadout wires,shaft for you,
if need customize,contact our sales Dept. sales@ms-motor.com

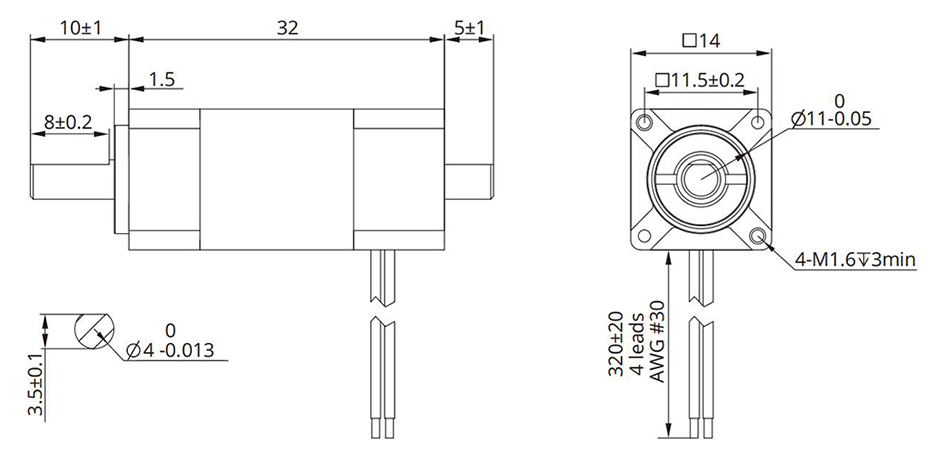

Dimensions

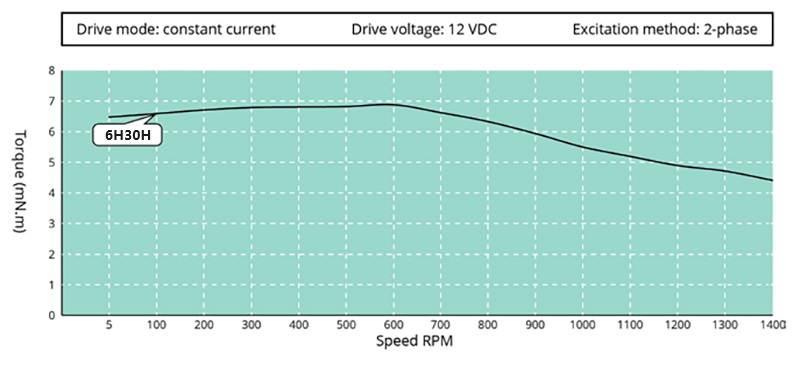

Torque Curves
