CHINA MS TECHNOLOGY CO., LTD. (MS MOTOR CO.,LTD.)
Nema 17 2-phase 1.8 degree

• Compact Size for High Torque • NEMA Size 17 Mounting• Custom winding available (No additional cost)• RoHS and CE version

Specifications

Model   No.

Rated
  Voltage

Current
  /Phase

Resistance
  /Phase

Inductance
  /Phase

Holding
  Torque

#Of   Leads

Rotor   Inertia

Weight

Length

Single   Shaft

V

A

Ω

mH

Oz-in

g-cm


g-cm2

Kg

mm

17H33H-0956A

4

0.95

4.2

2.5

22

1580

6

35

0.22

33

17H33H-0406A

9.6

0.4

24

15

22

1580

6

35

0.22

33

17H33H-0316A

12

0.31

38.5

21

22

1580

6

35

0.22

33

17H33H-1334A

2.8

1.33

2.1

2.5

30

2200

4

35

0.22

33

17H39H-1206A

4

1.2

3.3

3.2

36

2590

6

54

0.28

39

17H39H-0806A

6

0.8

7.5

6.7

36

2590

6

54

0.28

39

17H39H-0406A

12

0.4

30

30

36

2590

6

54

0.28

39

17H39H-1684A

2.8

1.68

1.65

3.2

50

3600

4

54

0.28

39

17H47H-1206A

4

1.2

3.3

2.8

44

3170

6

68

0.35

47

17H47H-0806A

6

0.8

7.5

6.3

44

3170

6

68

0.35

47

17H47H-0406A

12

0.4

30

25

44

3170

6

68

0.35

47

17H47H-1684A

2.8

1.68

1.65

2.8

62

4400

4

68

0.35

47

Dimensions


Wiring Diagram

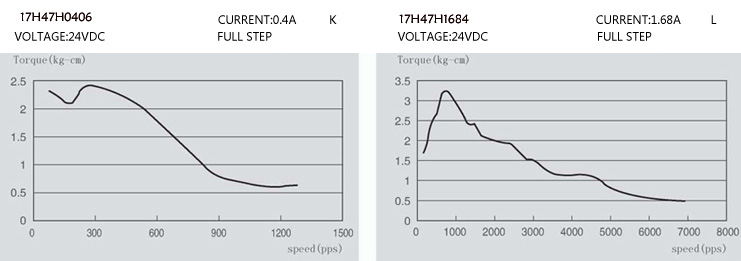

Torque Curves

Pull out torque curve:










Sales emailsales@ms-motor.com; msmotor@126.com
