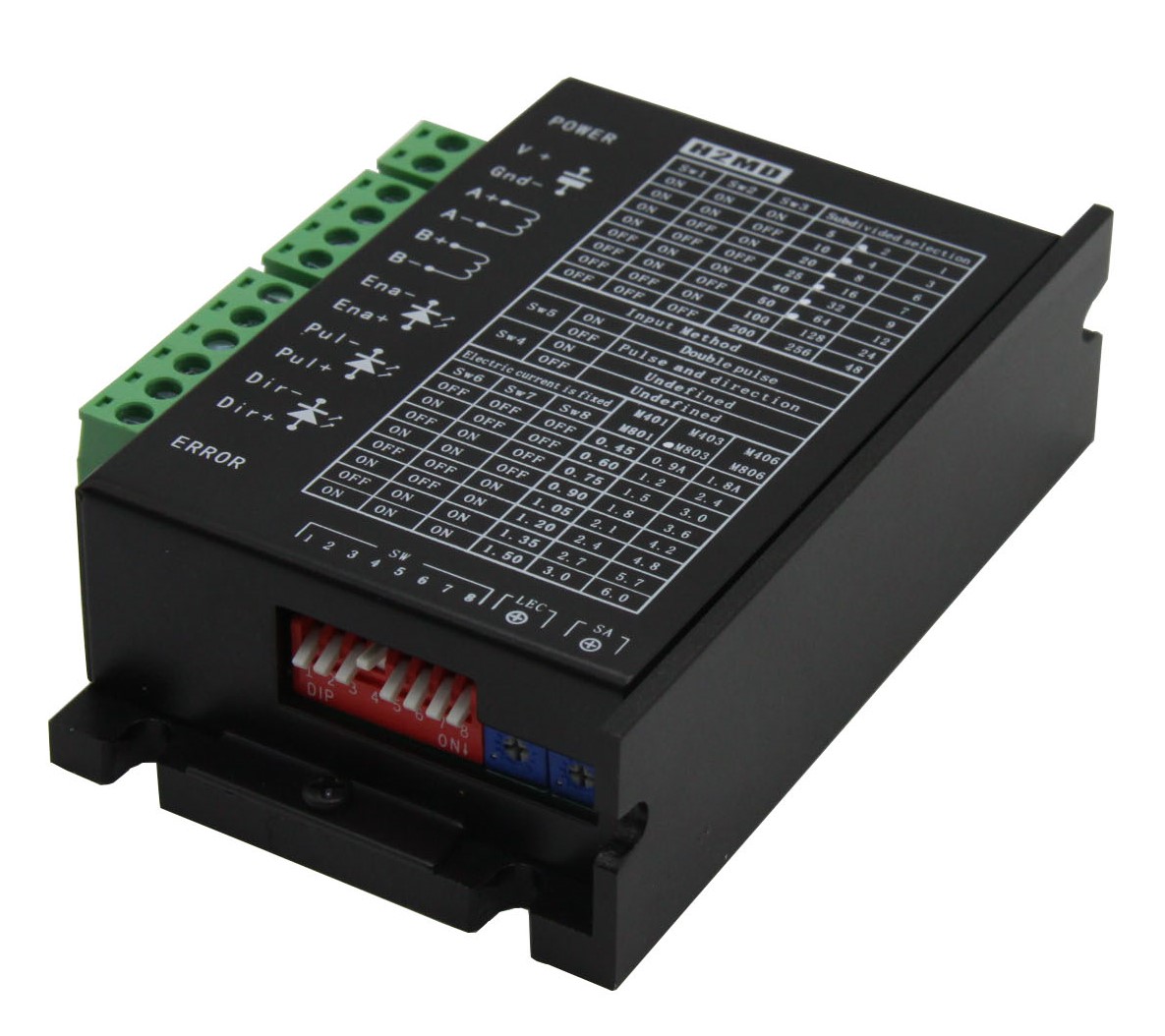

H2MD 2 phase stepper driver
Features:Low-speed ,Anti-shake, ultra-low noiseFault phase protection, overcurrent protectionDrive overheat protectionMultiple subdivision options(Can be customized according to customer requirements)···
Features:
Low-speed ,Anti-shake, ultra-low noise
Fault phase protection, overcurrent protection
Drive overheat protection
Multiple subdivision options
(Can be customized according to customer requirements)
Optically isolated signal input
Input pulse frequency 0-200kHz
Automatic low-power operation at rest
Single power input, voltage range:20V-80V DC
Electrical Specifications (Tj = 25oC/77oF)
| Type | H2MD | |||
| Min | Typical | Max | Unit | |
| Output current | 1.8 | - | 6.0 | A |
| Supply voltage | +20 | + | +80 | VDC |
| Logic signal current | 7 | 10 | 16 | mA |
| Pulse input frequency | 0 | - | 300 | kHz |
| Isolation resistance | 500 | Moh | ||
