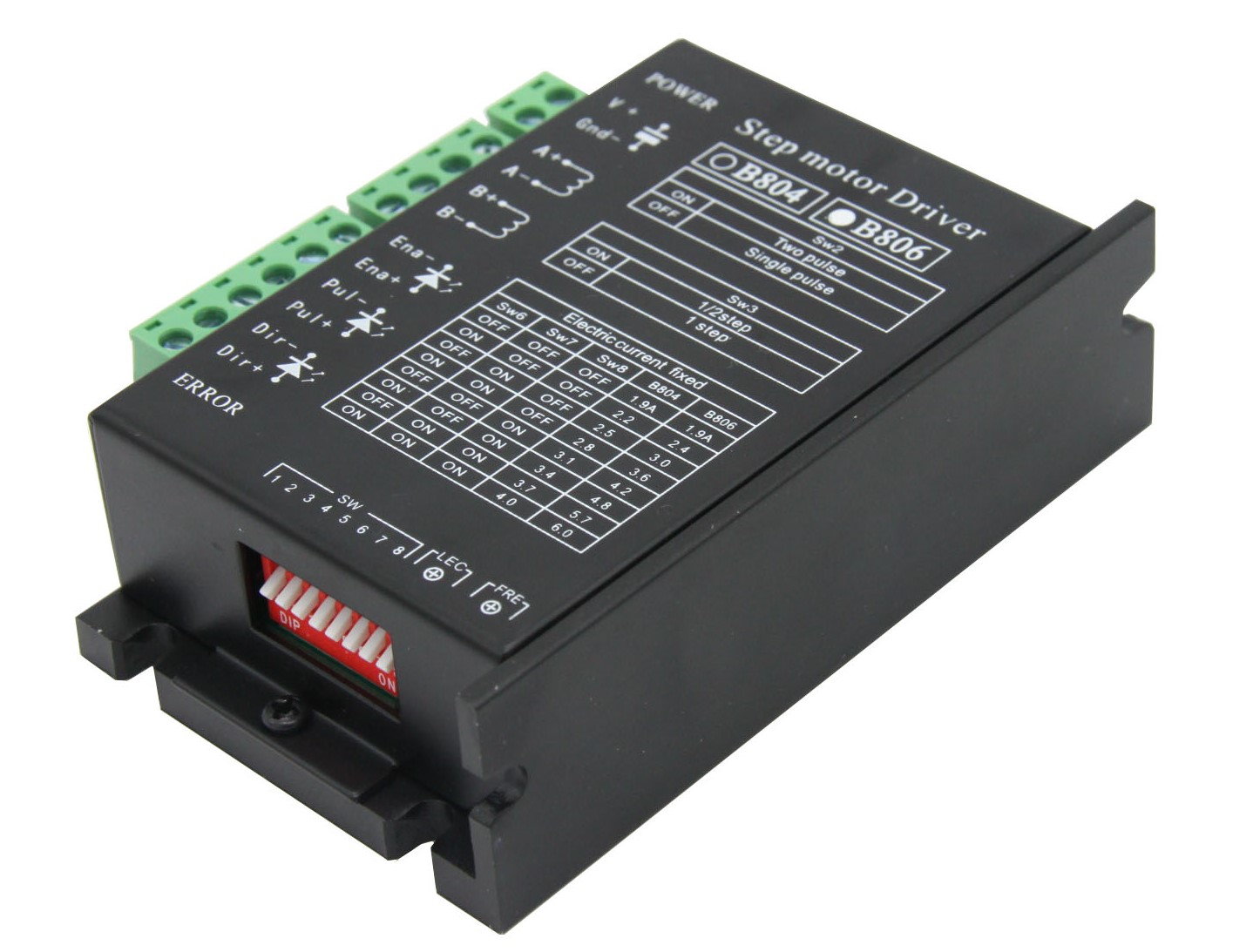

B806 Full/ Half Step Driver
● With the wrong phase protection and overcurrent protection● Single/double pulse settings● Input pulse frequency: 0-400KHZ● Optical isolation signal input● Automatic low-power operation at rest●···
Full/ Half step series
● With the wrong phase protection and overcurrent protection
● Single/double pulse settings
● Input pulse frequency: 0-400KHZ
● Optical isolation signal input
● Automatic low-power operation at rest
● Single power input, voltage: DC20-80V
Electrical Specifications (Tj = 25oC/77oF)
| Type | B806 | |||
| Min | Typical | Max | Unit | |
| Output current | 1.9 | - | 6.0 | A |
| Supply voltage | +20 | + | +80 | VDC |
| Logic signal current | 7 | 10 | 16 | mA |
| Pulse input frequency | 0 | - | 300 | kHz |
| Isolation resistance | 500 | Mohm | ||
