42mm OD Planetary Gearbox.Permissible Load Range: 1N.m~10N.m
Motor Technical Data
Type | Rated voltage VDC | No-load speed r/min | No-load current A | Rated speed r/min | Rated torque mN.m | Output power W | Rated current A | Stall torque mN.m | Stall current A |
42ZY75-2430 | 24 | 3000 | 0.15 | 2500 | 44 | 11.5 | 0.75 | 259 | 3.55 |
42ZY75- 2440 | 24 | 4000 | 0.20 | 3500 | 55 | 20 | 1.2 | 360 | 6.3 |
Gear Motor Technical Data
42ZY75-2430 DC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 181 | 219 | 254 | 306 | 354 | 427 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 |
Length(L) mm | 31.5 | 31.5 | 42.1 | 42.1 | 42.1 | 52.5 | 52.5 | 52.5 | 52.5 | 62.9 | 62.9 | 62.9 | 62.9 | 62.9 | 62.9 |
No-load speed r/min | 809 | 579 | 214 | 158 | 111 | 59 | 42 | 30 | 22 | 17 | 14 | 12 | 9.8 | 8.5 | 7.0 |
Rated speed r/min | 674 | 483 | 179 | 132 | 93 | 49 | 35 | 25 | 18 | 14 | 11 | 9.9 | 8.2 | 7.1 | 5.9 |
Rated torque N.m | 0.15 | 0.21 | 0.50 | 0.68 | 0.96 | 1.6 | 2.3 | 3.2 | 4.5 | 5.2 | 6.3 | 7.3 | 8.8 | 10 | 10 |
N.m Max. permissible load in a short time | 3 | 3 | 12 | 12 | 12 | 25 | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 |
42ZY75-2440 DC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 181 | 219 | 254 | 306 | 354 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
Length(L) mm | 31.5 | 31.5 | 42.1 | 42.1 | 42.1 | 52.5 | 52.5 | 52.5 | 52.5 | 62.9 | 62.9 | 62.9 | 62.9 | 62.9 |
No-load speed r/min | 1078 | 772 | 286 | 211 | 148 | 78 | 56 | 40 | 29 | 22 | 18 | 16 | 13 | 11 |
Rated speed r/min | 943 | 676 | 250 | 184 | 130 | 69 | 49 | 35 | 25 | 19 | 16 | 14 | 11 | 9.9 |
Rated torque N.m | 0.18 | 0.26 | 0.62 | 0.85 | 1.2 | 2.1 | 2.9 | 4.0 | 5.6 | 6.5 | 7.8 | 9.1 | 10 | 10 |
N.m Max. permissible load in a short time | 3 | 3 | 12 | 12 | 12 | 25 | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 |

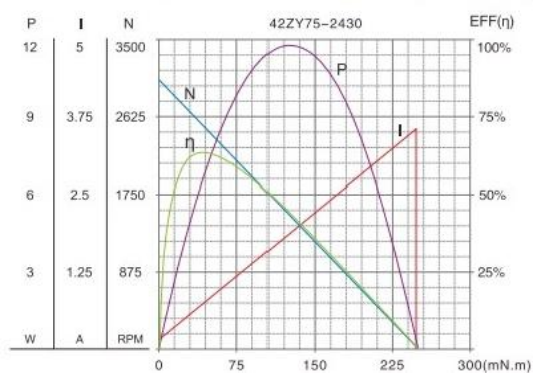

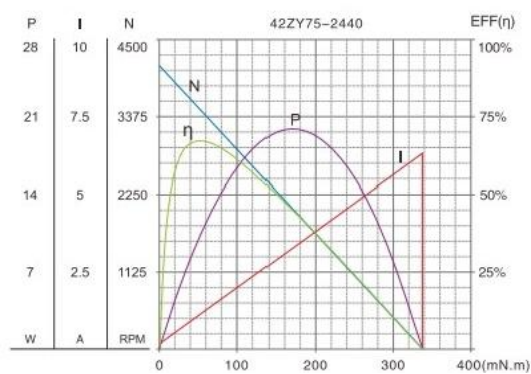

Motor Characteristic Figure

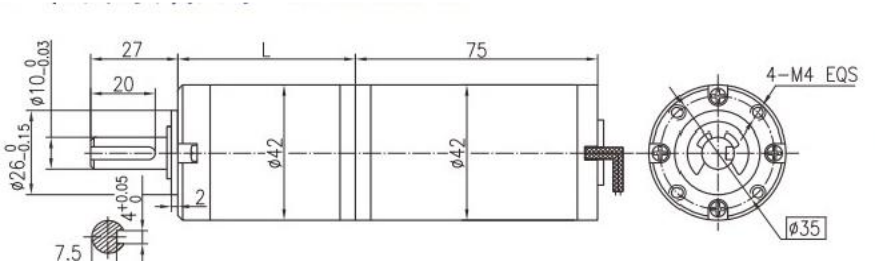

Dimensions
Ring gear can be selected within the two materials: Powder metal(Type:42JXF100K),Metal(Type:42JXE100K).
