32JXB20K/28ZY38P

32mm OD Planetary Gearbox.Permissible Load Range: 0.2N.m~2.0N.m

Motor Technical Data

TYPE

Rated

voltage

VDC

No-load

speed

r/min

No-load

current

Rated

speed

r/min

Rated

torque

mN.m

Output

power

Rated

current

Stall

torque

mN.m

Stall

current

28ZY38P- 1265

6500

150

5250

7.6

4.2

530

2.65

28ZY38P-2465

6500

5250

7.6

4.2

250

1.25

Gear Motor Technical Data

28ZY38P-1265 DC Motor

Reduction ratio	3.7	5.2	14	19	27	35	51	71	100	139	189	264	369	516	721	939
Number of gear trains	1	1	2	2	2	2	3	3	3	3	4	4	4	4	4	4
Length(L) mm	20.7	20.7	27.3	27.3	27.3	27.3	33.6	33.6	33.6	33.6	39.9	39.9	39.9	39.9	39.9	39.9
No-load speed r/min	1752	1255	464	342	241	186	127	92	65	47	34	25	18	13	9.0	6.9
Rated speed r/min	1415	1014	375	276	194	150	103	74	53	38	28	20	14	10	7.3	5.6
Rated torque N.m	0.025	0.035	0.086	0.12	0.17	0.22	0.28	0.39	0.55	0.77	0.93	1.3	1.8	2	2	2
N.m Max. permissible load in a short time	0.6	0.6	2.4	2.4	2.4	2.4	4.8	4.8	4.8	4.8	4.8	4.8	4.8	4.8	4.8	4.8

28ZY38P-2465 DC Motor

Reduction ratio	3.7	5.2	14	19	27	35	51	71	100	139	189	264	369	516	721	939
Number of gear trains	1	1	2	2	2	2	3	3	3	3	4	4	4	4	4	4
Length(L) mm	20.7	20.7	27.3	27.3	27.3	27.3	33.6	33.6	33.6	33.6	39.9	39.9	39.9	39.9	39.9	39.9
No-load speed r/min	1752	1255	464	342	241	186	127	92	65	47	34	25	18	13	9.0	6.9
Rated speed r/min	1415	1014	375	276	194	150	103	74	53	38	28	20	14	10	7.3	5.6
Rated torque N.m	0.025	0.035	0.086	0.12	0.17	0.22	0.28	0.39	0.55	0.77	0.93	1.3	1.8	2	2	2
N.m Max. permissible load in a short time	0.6	0.6	2.4	2.4	2.4	2.4	4.8	4.8	4.8	4.8	4.8	4.8	4.8	4.8	4.8	4.8

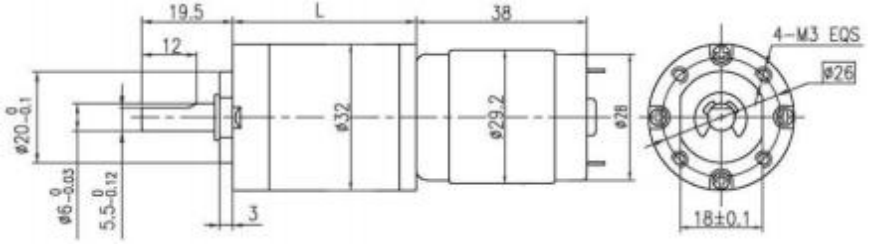

Dimensions

Standard output shaft OD 6mm, OD 8mm optional.
