17H 2-phase 3.6 degree
• Compact Size for High Torque • NEMA Size 17 Mounting• Custom winding available (No additional cost)• RoHS and CE version
Specifications
Model No. | Rated | Current | Resistance | Inductance | Holding | #Of | Rotor Inertia | Weight | Length | |
Single Shaft | V | A | Ω | mH | Oz-in | g-cm | g-cm2 | Kg | mm | |
17H34H-0954DA | 9.31 | 0.095 | 98 | 200 | 7.2 | 530 | 4 | 20 | 0.20 | 34 |
17H38H-0954DA | 9.98 | 0.095 | 105 | 330 | 9.7 | 700 | 4 | 23 | 0.23 | 38 |
Dimensions
Wiring Diagram
Torque Curves

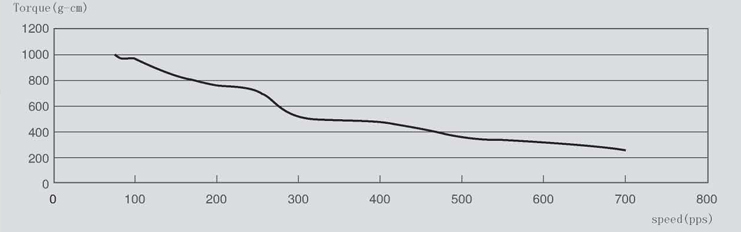

Pull out torque curve:
MODEL: 17H34H-0954D CURRENT:0.095A VOLTAGE:24VDC FULL STEP
MODEL: 17H38H-0954D CURRENT:0.095A VOLTAGE:24VDC FULL STEP
