CHINA MS TECHNOLOGY CO., LTD. (MS MOTOR CO.,LTD.)
17H 2-phase 0.9 degree

• Compact Size for High Torque • NEMA Size 17 Mounting• Custom winding available (No additional cost)• RoHS and CE version

Specifications

Model   No.

Rated
  Voltage

Current
      /Phase

Resistance
      /Phase

Inductance
      /Phase

Holding
      Torque

#Of
  Leads

Rotor
   Inertia

Weight

Length

Single   Shaft

Double   Shaft

V

A

Ω

mH

Oz-in

g-cm


g-cm2

Kg

mm

17H33HM-0956A

17H33HM-0956B

4

0.95

4.2

4

22

1580

6

35

0.22

33

17H33HM-0606A

17H33HM-0606B

6

0.6

10

9.5

22

1580

6

35

0.22

33

1733HM-0316A

17H33HM-0316B

12

0.31

38.5

33

22

1580

6

35

0.22

33

17H33HM-1334A

17H33HM-1334B

2.8

1.33

2.1

4.2

30

2200

4

35

0.22

33

17H39HM-1206A

17H39HM-1206B

4

1.2

3.3

4

36

2590

6

54

0.28

39

17H39HM-0806A

17H39HM-0806B

6

0.8

7.5

7.5

36

2590

6

54

0.28

39

17H39HM-0406A

17H39HM-0406B

12

0.4

30

30

36

2590

6

54

0.28

39

17H39HM-1684A

17H39HM-1684B

2.8

1.68

1.65

4

50

3300

4

54

0.28

39

17H47HM-1206A

17H47HM-1206B

4

1.2

3.3

4

44

3170

6

68

0.35

47

17H47HM-0806A

17H47HM-0806B

6

0.8

7.5

10

44

3170

6

68

0.35

47

17H47HM-0406A

17H47HM-0406B

12

0.4

30

38

44

3170

6

68

0.35

47

17H47HM-1684A

17H47HM-1684B

2.8

1.68

1.65

4.1

62

4400

4

68

0.35

47

Dimensions

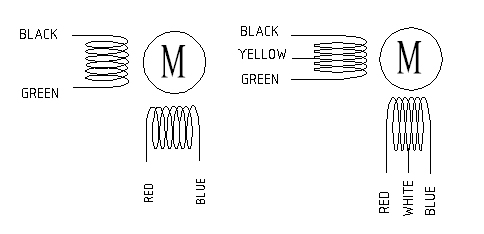

Wiring Diagram

Torque Curves

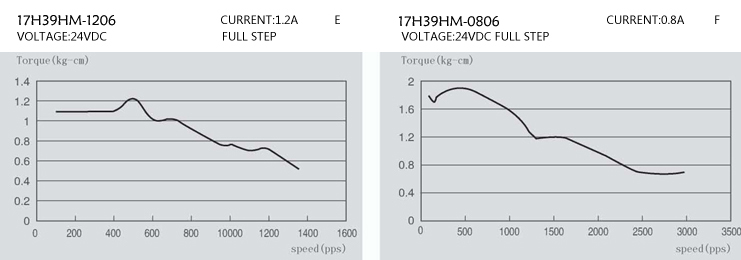

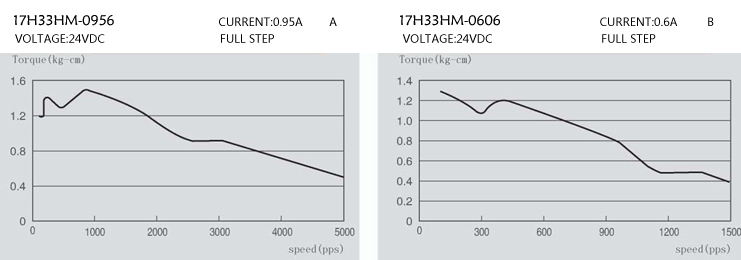

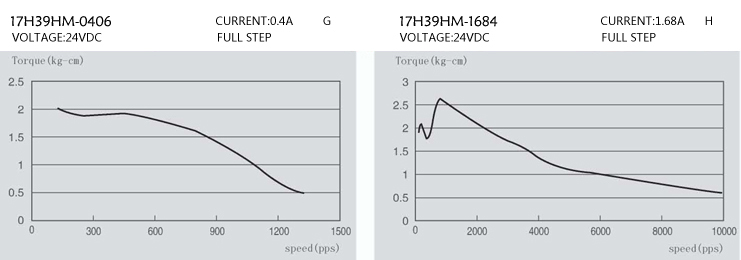

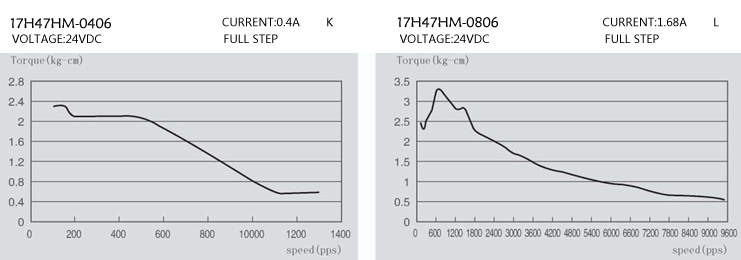

Pull out torque curve:








Sales emailsales@ms-motor.com; msmotor@126.com
