3 Phase DC Brushless Motor 86 Series 86mm*86mm frame
Winding type:Star
Hall effect angle:120 degree electrical angle
Shaft run out:0.025mm
Radial play:0.02mm@450g
End play:0.08mm@450g
Max. radial force:300N @ 20mm from the flange
Max.axial force:80N
Insulation class:Class B
Dielectric strength:600VDC for one minute
Insulation resistance:100MΩMin.,500VDC
Electrical Specifications | ||||||||||
Series Model | Rated power | Rated yoltage | Rated current | Number of poles | Rated speed | Rated torque | Peak torque | Torque constant | Length | Weight |
W | VDC | A | rpm | N.m | N.m | N.m/A | mm | Kg | ||
86BL3A70-240X | 220 | 24 | 12.2 | 8 | 3000 | 0.7 | 2.1 | 0.056 | 98 | 1.85 |
86BL3A70-440X | 220 | 48 | 6.1 | 8 | 3000 | 0.7 | 2.1 | 0.115 | 98 | 1.85 |
86BL3A100-440X | 440 | 48 | 13 | 8 | 3000 | 1.4 | 4.2 | 0.115 | 124 | 2.6 |
86BL3A100-640X | 440 | 310 | 1.9 | 8 | 3000 | 1.4 | 4.2 | 0.75 | 124 | 2.6 |
86BL3A125-440X | 660 | 48 | 17 | 8 | 3000 | 2.1 | 6.3 | 0.115 | 152 | 4 |
86BL3A125-640X | 660 | 310 | 2.8 | 8 | 3000 | 2.1 | 6.3 | 0.75 | 152 | 4 |

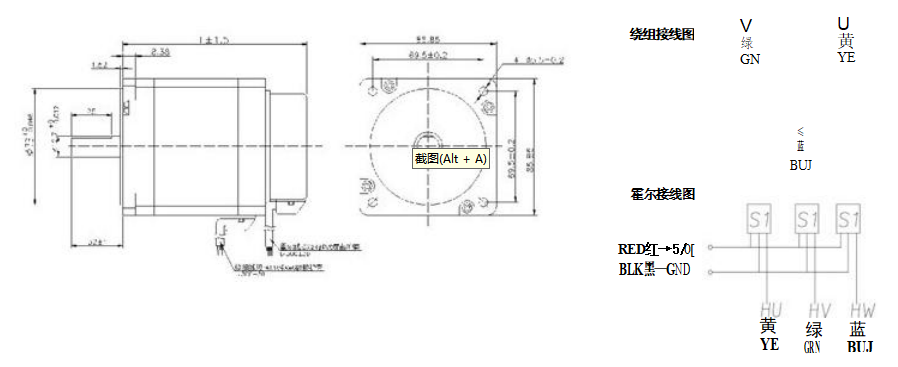

Dimensions
*We can customize products according to customer requirements
