60JB50K/60ZY75

60mm Integrated Gearbox.Permissible Load Range: 5.0N.m

Motor Technical Data

Gear Motor Technical Data

60ZY75-2420 DC Motor

Reduction ratio	3	5	7.5	10	12.5	15	25	30	50	75	90	100	120	150
Number of gear trains	2	2	2	2	2	2	3	3	3	4	4	4	4	4
Length(L) mm	32	32	32	32	32	32	40	40	40	40	40	40	40	40
No-load speed r/min	667	400	267	200	160	133	80	67	40	27	22	20	17	13
Rated speed r/min	533	320	213	160	128	106	64	53	32	21	18	16	13	10.5
Bated torgue N.m	0.13	0.22	0.33	0.44	0.55	0.66	1.0	1.2	2.0	2.7	3.1	3.6	4.3	5.0
N.m Max. permissible load in a short time	2.5	2.5	2.5	2.5	2.5	2.5	5.0	5.0	5.0	10	10	10	10	10
Direction of rotation	CW	CW	CW	CW	cW	CW	CCW	CCW	CCW	CW	CW	CW	CW	CW

60ZY75-2430 DC Motor

Reduction ratio	3	5	7.5	10	12.5	15	25	30	50	75	90	100	120	150
Number of gear trains	2	2	2	2	2	2	3	3	3	4	4	4	4	4
Length(L) mm	32	32	32	32	32	32	40	40	40	40	40	40	40	40
No-load speed r/min	1000	600	400	300	240	200	120	100	60	40	33	30	25	20
Rated speed r/min	800	480	320	240	192	160	96	80	48	32	26	24	20	16
Rated torque N.m	0.17	0.28	0.42	0.56	0.7	0.85	1.2	1.5	2.5	3.8	4.5	5.0	5.0	5.0
N.m Max. permissible load in a short time	2.5	2.5	2.5	2.5	2.5	2.5	5.0	5.0	5.0	10	10	10	10	10
Direction of rotation	CW	CW	CW	CW	CW	cw	CCW	CCW	CCW	cw	CW	CW	CW	CW

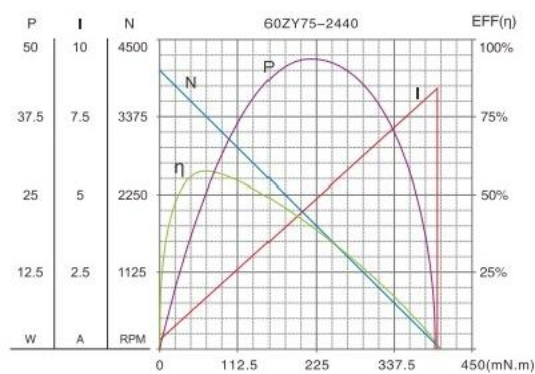

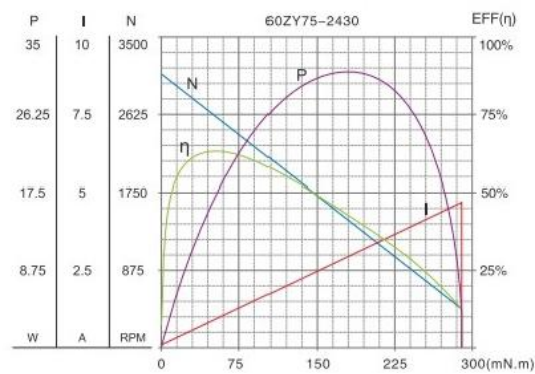

Motor Characteristic Figure

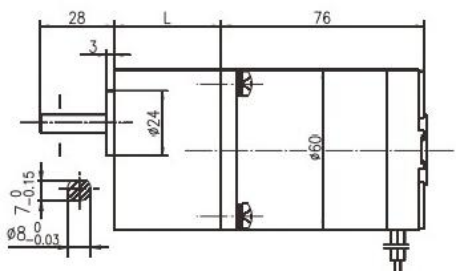

Dimensions

Long-lived Gearboxes, Alloy structural steel gears,all using rolling bearings.
