32mm OD Planetary Gearbox.Permissible Load Range:0.2N.m~2.0N.m
Wire Diagram
U | V | W | Vcc | Ha | Hb | Hc | GND |
Red | Yellow | Black | Red | Blue | Green | White | Black |
20AWG UL1569 | 26AWG UL1569 | ||||||
Brushless Motor Technical Data
Type | Number of poles | Number of phase | Rated voltage VDC | No-load speed r/min | No-load current A | Rated torque mN.m | Rated speed r/min | Rated current A | Rated power W | Reak torque mN.m | Peak current A |
28DMW40-24120 | 4 | 3 | 24 | 12000 | 0.20 | 10 | 10000 | 0.55 | 10 | 30 | 1.7 |
Brushless Gear Motor Technical Data
28 DMW40-24120 BLDC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 35 | 51 | 71 | 100 | 139 | 181 | 218 | 253 | 305 | 354 | 426 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 |
Length(L) mm | 20.7 | 20.7 | 27.3 | 27.3 | 27.3 | 27.3 | 33.6 | 33.6 | 33.6 | 33.6 | 39.9 | 39.9 | 39.9 | 39.9 | 39.9 | 39.9 |
No-load speedr/min | 3235 | 2317 | 857 | 632 | 444 | 343 | 235 | 169 | 120 | 86 | 66 | 55 | 47 | 39 | 34 | 28 |
Rated speed r/min | 2695 | 1931 | 714 | 526 | 370 | 286 | 196 | 141 | 100 | 72 | 55 | 46 | 40 | 33 | 28 | 23 |
Rated torque N.m | 0.033 | 0.047 | 0.11 | 0.15 | 0.22 | 0.28 | 0.37 | 0.52 | 0.73 | 1.0 | 1.2 | 1.4 | 1.6 | 2 | 2 | 2 |
Max. permissible load in a short time N.m | 0.6 | 0.6 | 2.4 | 2.4 | 2.4 | 2.4 | 4.8 | 4.8 | 4.8 | 4.8 | 6 | 6 | 6 | 6 | 6 | 6 |

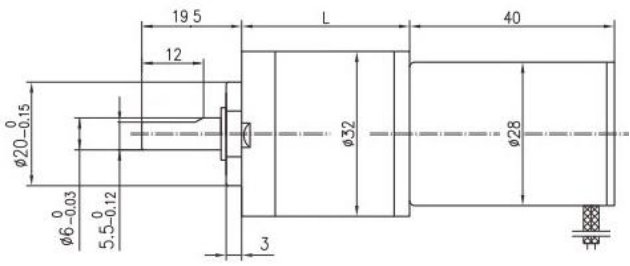

Dimensions
